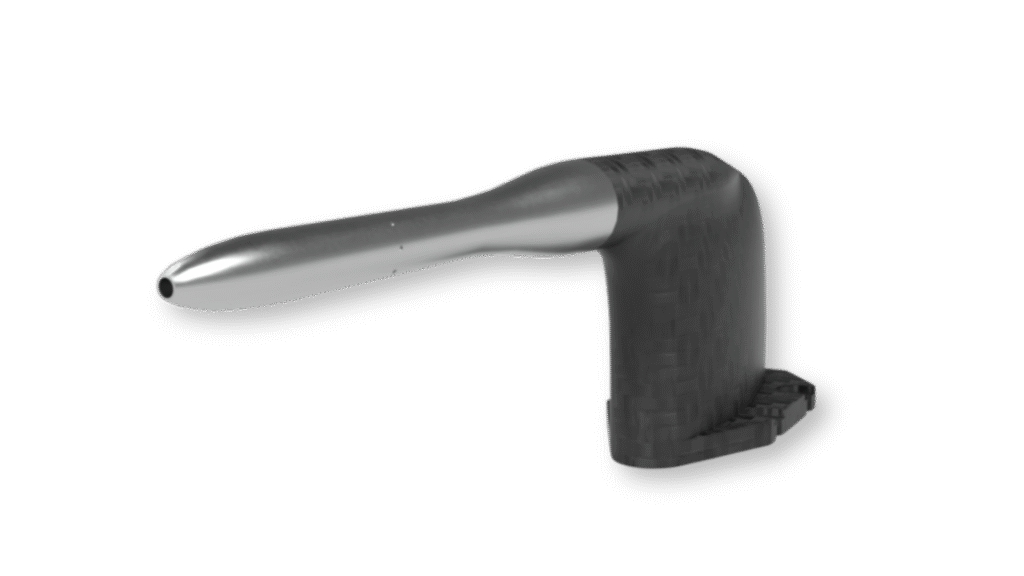

iProbe Wing

All-in-one air data UAV probe with integrated ADC

Lightweight, robust, and fully integrated for fixed-wing UAV applications: Vectoflow’s iProbe Wing is a compact air data UAV solution that combines a precision probe head with an embedded Air Data Computer (ADC) to deliver real-time airspeed, altitude, temperature, pressure, and humidity data. Designed for the aerodynamic and environmental demands of unmanned aerial systems, it is part of Vectoflow’s advanced wing aero products portfolio. Built to aerospace standards (EN9100, EASA Part 21), the system offers dual pressure sensor ranges for unmatched accuracy across low- and high-speed flight regimes.

Contact request

Features

Highlights

Integrated heating element to prevent icing and moisture blockage
Integrated drainage for total pressure port
Dual pressure sensor ranges for low- and high-speed accuracy on request
Embedded Air Data Computer for real-time aerodynamic corrections
Humidity and temperature sensors embedded in probe head
Customizable probe head geometry, main body shape, mounting configuration, and heater setup

Measured Parameters

Airspeed
Altitude
Temperature
Pressure (total and static)
Humidity

Configurations

Customizable for your application in terms of:

Functional capabilities
Sensor measurement range
Single or dual range sensors
Probe head shape
Probe main body shape
Mounting configuration
Mechanical interfaces
Heater configuration

Typical Applications

UAV and drone air-data systems
Light aircraft applications
Aerospace applications
…as well as further general aviation and aerospace applications

Downloads

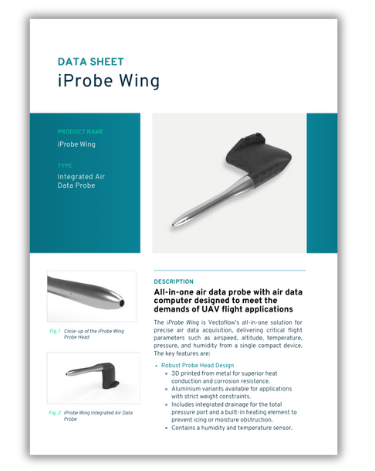

technical data sheet

DESIGN & PRODUCTION

Additive Manufacturing at Vectoflow

Additive manufacturing is at the heart of Vectoflow’s probe technology. Using advanced 3D-printing processes, we create lightweight yet extremely robust probes with geometries that conventional manufacturing cannot achieve. Complex internal channels, compact multi-sensor designs, and fully integrated features enable reliable flow measurement even under the most demanding aerodynamic and thermal conditions.

All Under One Roof

Our in-house facilities in Gilching (Germany) allow us to move seamlessly from concept to finished probe – combining design, production, and calibration under one roof. The result: tailor-made flow measurement solutions that deliver accuracy, durability, and unmatched flexibility for every application.

learn more
